Trent and Mersey Canal
A classic Brindley aqueduct, built just before 1770 to carry the Trent and Mersey canal over the Dove.
From a design point of view the aqueduct is interesting. The limited clearance between the bottom of the water channel and the normal surface level provided no scope for high arches, which are needed to cope with the significant volumes of flood water which need to pass under it from time to time.
As Brindley was unable to provide the capacity by using high arches he compensated by extending the length of the aqueduct and in so doing increasing the number of smaller watercourses available to eleven.

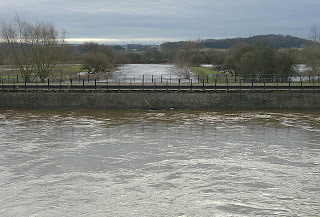

Judging by the above picture of the aqueduct when the Dove is in flood, the end result is barely enough. Having said that, the aqueduct has stood for 240 years! The need to withstand the huge lateral forces of the river in flood probably accounts for the wider than expected water channel and margins.
By way of a bonus there is an extra arch just to the east of the main aqueduct, which could probably be seen as a separate aqueduct. However, as it merely carries a small side stream of the river Dove I am including it on the same page. If this single arch has a unique name please let me know and I will afford it a page all of its own!
By way of a bonus there is an extra arch just to the east of the main aqueduct, which could probably be seen as a separate aqueduct. However, as it merely carries a small side stream of the river Dove I am including it on the same page. If this single arch has a unique name please let me know and I will afford it a page all of its own!
